Workshop Crane

<< Previous Workshop Crane

Product Specification

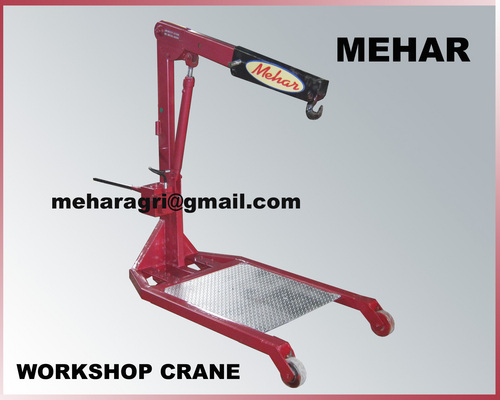

Workshop Crane

We are manufacturer and supplier of Workshop Crane. Super economy model delivered in knock down form for reduced freight cost. Heavy-duty castors. Perfect for mobile or workshop use. Side pump access with removable handle.

Lifting Cap in Position 1: 1000kg
Lifting Cap in Position 2: 750kg
Lifting Cap in Position 3: 500kg
Lifting Cap in Position 4: 250kg
Maximum Lift Ht at Minimum Jib Extn: 1855mm
Maximum Lift Ht at Maximum Jib Extn: 1990mm
Length of Jib Position 1: 893mm
Length of Jib Position 2: 983mm
Length of Jib Position 3: 1073mm
Length of Jib Position 4: 1163mm
Height of Frame: 147mm
Length of Frame: 1518mm
Overall Height: 1550mm
Maximum Width of Frame: 962mm
Width Inside Frame: 862mm
Distance between Centres of Rear Wheels: 685mm
Weight: 250kg

Product Code : Workshop Crane
